D&R Dayner

D&R Dayner

This is a tipical studio in-line consolle, with direct outs, tape returns, eight busses and eight auxiliaries.

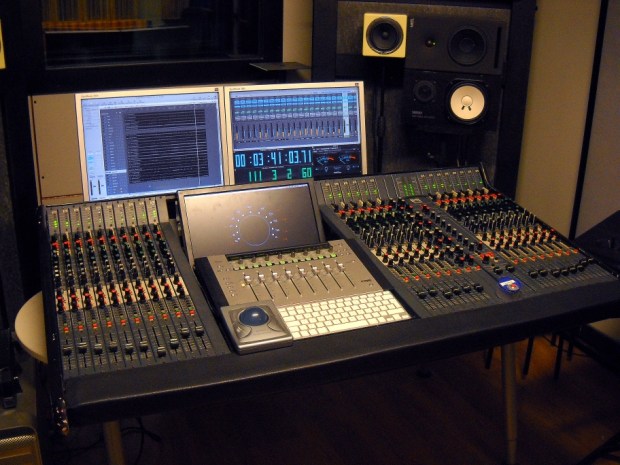

D&R Dayner in my control room

D&R Dayner in my control room

It has 24 channels and eight effects return and we did broaded it frame to insert Euphonix MC Mix control surface, Apple keyboards and third screen of my DAW.

Dayner peculiarity is it floating busses (named subs), that is the possibility to assign any bus to any channel (along left/right assignement). Tape output and monitor section are substitute by bus signal. It’s useful to send to recorder premixed channels.

Dayner input section - above the floating subs assign

Dayner input section – above the floating subs assign

Then it’s possible to work from 24 channels without busses to 16 channels and 8 busses.

They have three kinds of channels: In-Line, Split and Tape/Effects return.

In-line: it’s a basic channel, it manage mic and line input with eq, aux sends and volume. Also it manage tape return on specific input and monitor section. It’s possible invert input with tape return to mix the latter (remix switch). Bus assignement send it to tape out and monitor section without possibility to assign it to main.

Split: it’s the dedicate channel to manage floating bus on mixing with assignement to main. It haven’t tape return section. We haven’t split channel but on In-line channel we chained tape out with line-in to replicate their. In this way we can applied insert and complete eq section on bus signal and mix it.

Tape/Effects return: it has four balanced line input. They are perfect to manage extra eight channel to mix. Today I use it chained with two channel strip Focusrite ISA220 and to input stereo effects return from DAW.

We tested Dayner bandwidth with Spectrafoo and DAD AX32 at 96kHz (see test here) and the eq too.

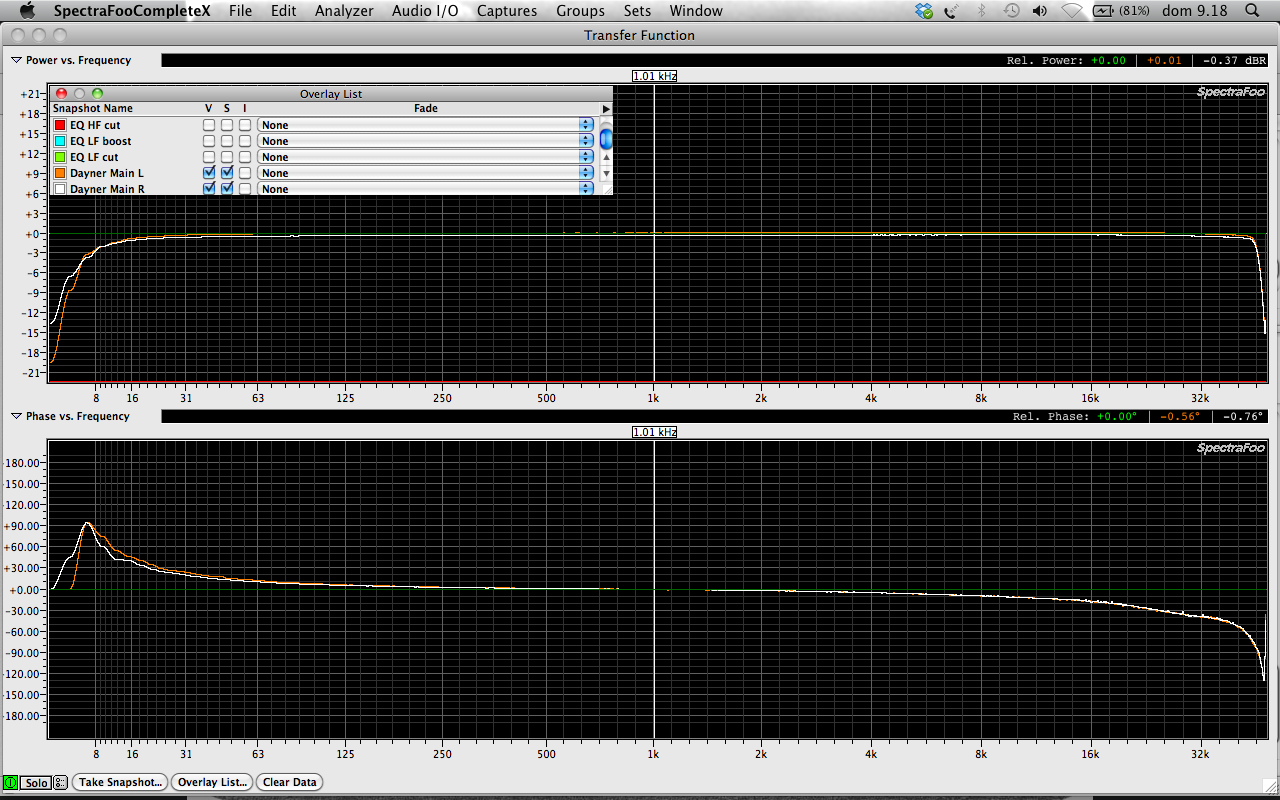

Bandwidth and phase response measured at 96kHz

Bandwidth and phase response measured at 96kHz

We like the eq of Dayner, it works in mellow way without artifacts. It sounds great on drums and electric bass.

The eight auxiliaries are routed to DAW to applied reverb, delay or modulation effect.

We can mix from 32 channels without group to 24 channels + 8 groups (busses).

We suggest it to mix rock, blues and jazz (acoustic and electric).
